AEM High Flow In-Tank Fuel Pump

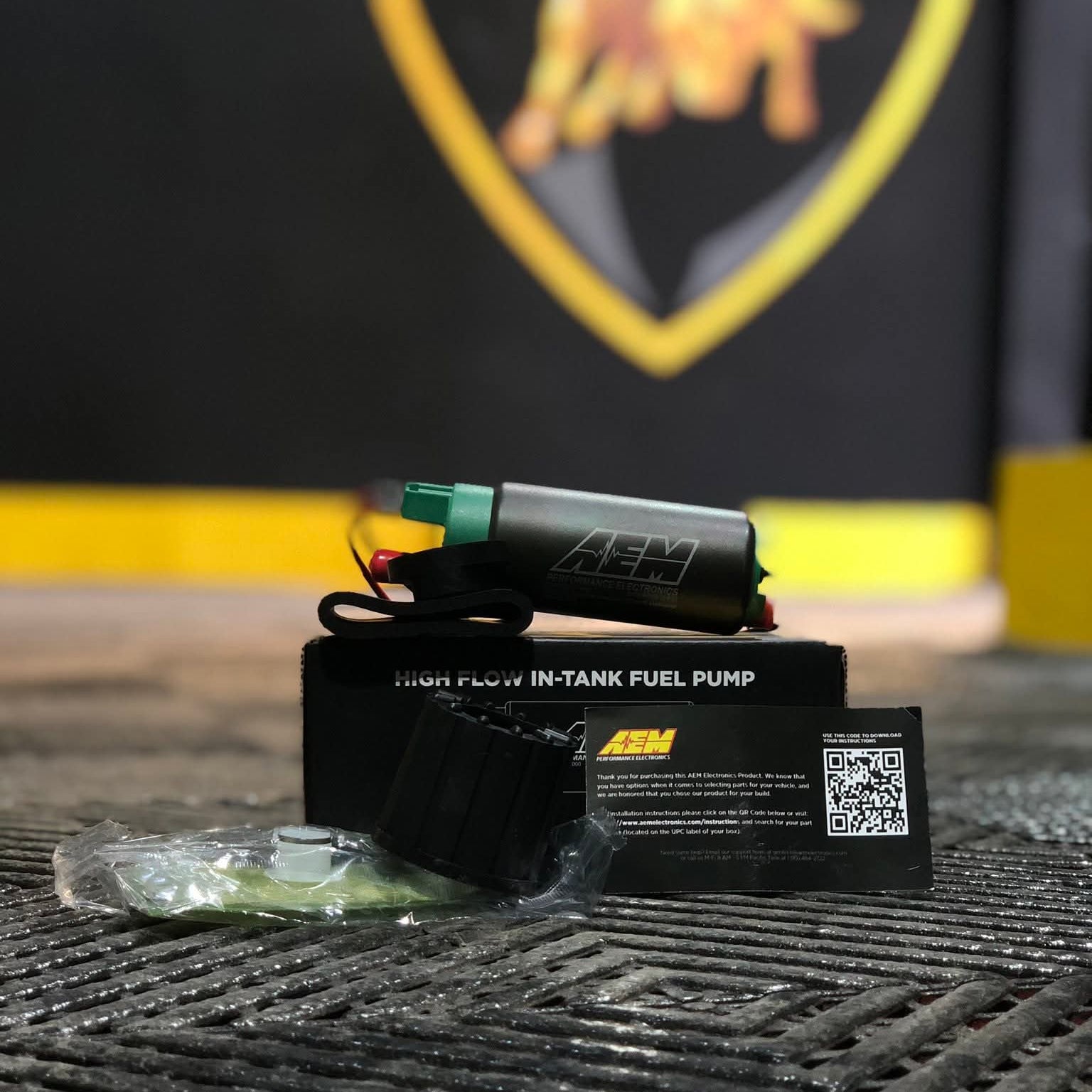

AEM's 340LPH E85-Compatible High Flow In-Tank Fuel Pumps are built to be strong and durable, designed to handle the challenges of ethanol and methanol fuels, which don't provide as much lubrication. These pumps are tested to work with ethanol up to E100, methanol up to M100, and all types of gasoline. The AEM 340LPH E85-Compatible High Flow In-Tank Fuel Pump is made for installation inside the fuel tank of high-performance naturally aspirated and forced induction vehicles. It has a small size, measuring 39mm in diameter, so it fits most setups, and its offset inlet design makes it easier to install. The pump comes with a wiring harness, pre-filter, end cap, and rubber buffer sleeve. Each AEM 340LPH E85-Compatible Fuel Pump is tested to deliver 340 liters per hour at 40 PSI before it is sold.

TECHNICAL SPECS:
Weight: 12.5oz (354grams)
Outside Diameter: 39mm OD
External Materials: Black plated steel with laser etching
Inlet Fitting: 7.7mm ID, 11.0mm OD.
Offset Inline
Outlet Fitting: 8 mm hose clamp.
Offset
PRV Activation: 80 PSI
Impeller Design: Single Scroll Ceramic Turbine

VOLTAGE SPECS:
Connector Terminal: 6 mm Spade (positive/negative)
Min Voltage Input: 6 volts
Max Voltage Input: 18 volts
Current Draw (40 psi): 12 amps (13.5v)
Current Draw (80 psi): 15 amps (13.5v)
Fuse: 20 amps (13.5v)
* Power rating given at 43 PSI, 13.5v at the pump terminal with a BSFC of .5.
Flow capability for horsepower support depends on fuel hose diameter, and system electrical voltage and amperage capabilities.
